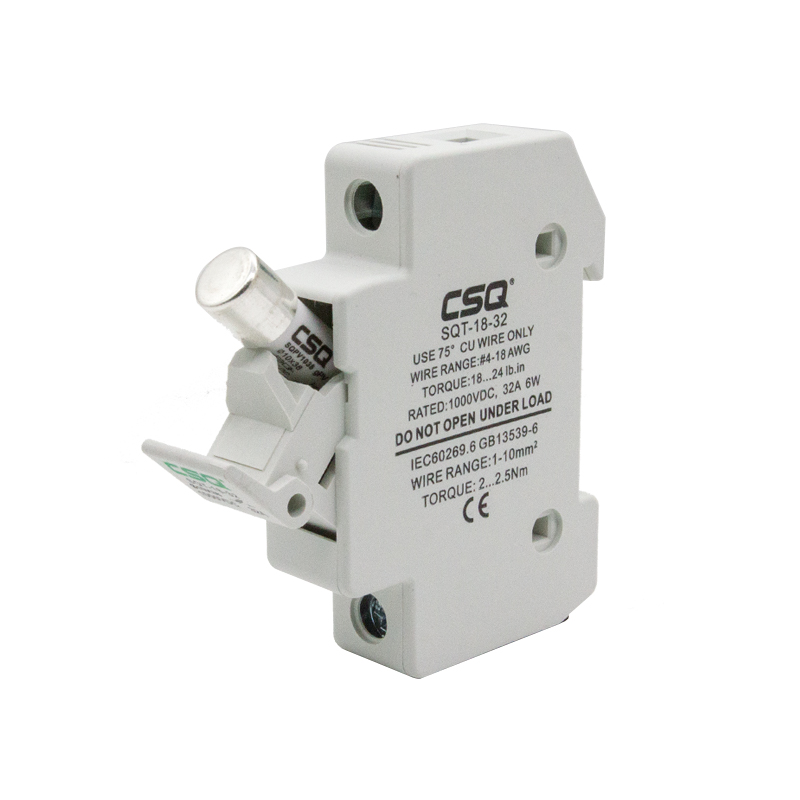

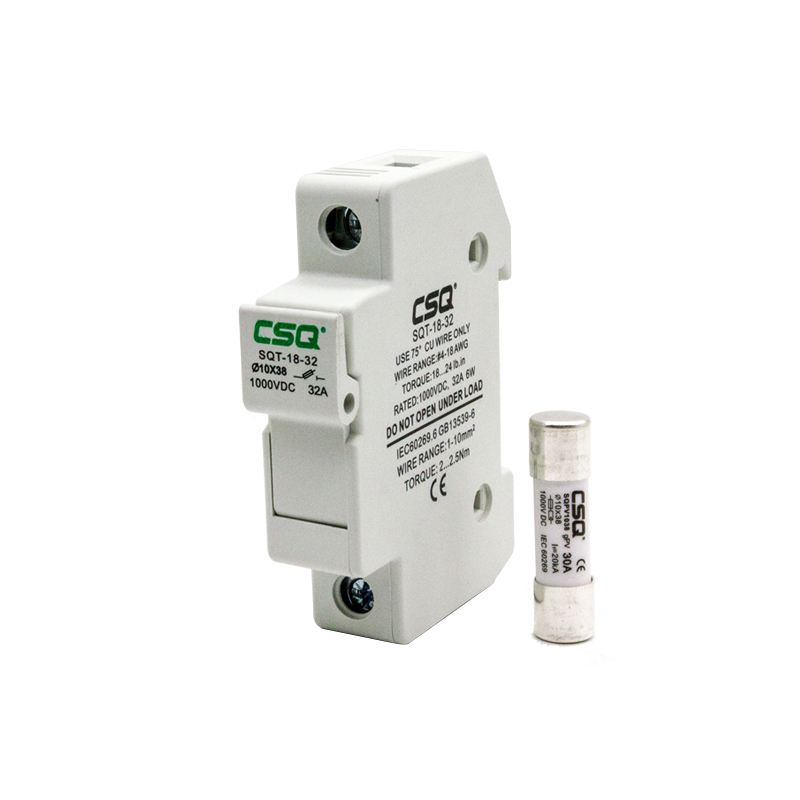

Model: SQT-18-32
Pole: 10x38MM
Rated Voltage:1000VDC
Rated Current: 1A-32A
Standard: IEC60947-3
MOQ:10PC
Availability: | |
---|---|
1.A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
2.DC Fuse mainly used in DC combiner box in solar PV systems. When PV panel or imverter caused overload or short circuit, it trip off immediately, to protect PV panels, DC fuse aslo used to protect other electrical parts in DC circuit, when overload or short
circuit.
Item | DC Fuse Holder |
Model | SQT-18-32 |
Rated voltage | DC 1000V |
Rated current | 1A-32A |
Short-circuit breaking capacity | 33KA |
Protection grade | IP20 |
Connection | 2.5-10mm2 |
Operation ambient temperature | -30~+70°C |
Standard | IEC60947-3 |
Weight(kg) | 0.07KG |
1.A range of 10x38mm fuse links specifically designed for protecting photovoltaic strings. These fuse links are capable of interrupting low overcurrents associated with faulted photovoltaic string arrays (reverse current, multi-array fault).
2.DC Fuse mainly used in DC combiner box in solar PV systems. When PV panel or imverter caused overload or short circuit, it trip off immediately, to protect PV panels, DC fuse aslo used to protect other electrical parts in DC circuit, when overload or short
circuit.
Item | DC Fuse Holder |
Model | SQT-18-32 |
Rated voltage | DC 1000V |
Rated current | 1A-32A |
Short-circuit breaking capacity | 33KA |
Protection grade | IP20 |
Connection | 2.5-10mm2 |
Operation ambient temperature | -30~+70°C |
Standard | IEC60947-3 |
Weight(kg) | 0.07KG |
