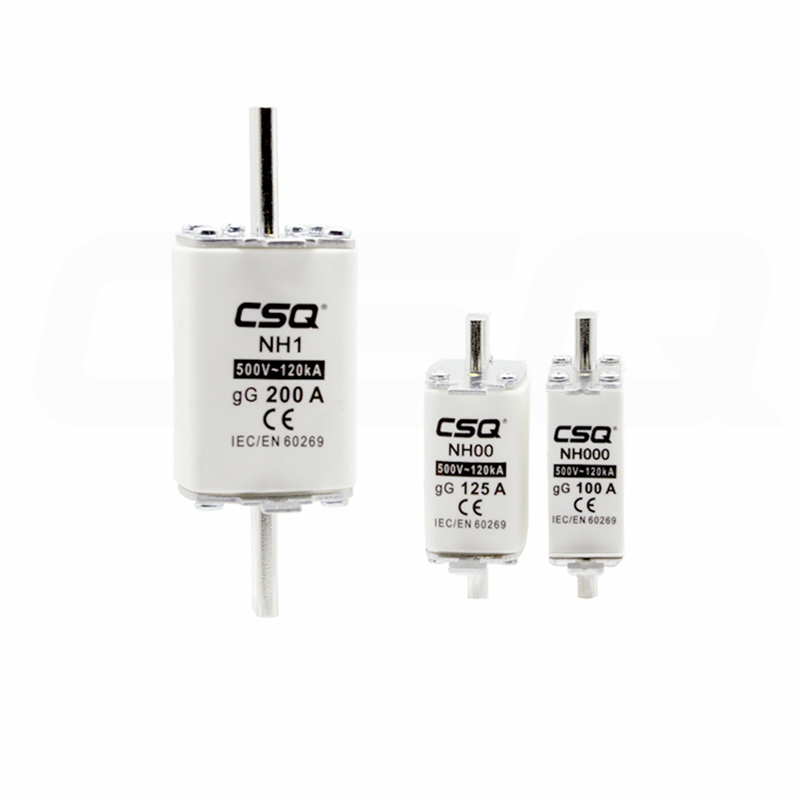

This series fuse Link is suitable for AC 50Hz , rated voltage to 690V, rated current to 630A. lt is mainly used in the
electric installation for protecting circuit from overload and short circuit(gG/GL).
It also may derive for protecting the semiconductor device and others complete set installment from short-circuit(aR)as well as the electric motor from short-circuit.
The rated breaking capability for this series fuse is to120KA.
This series fuse link conforms to national standard GB13539 and International electrical committee standa rd IEC60269.
Item Code | NH000 | NH00 | NH0 | NH1 | NH2 | NH3 |
Rated current(A) | 4-100 | 10-160 | 6-160 | 32-250 | 80-400 | 160-630 |
Rated voltage | 500VAC/690VAC | |||||
Certificate | Ce | |||||
Standard | IEC60269 | |||||
Contact Material | CopperT3 | |||||
Body Material | Ceramic | |||||
Color | White | |||||
Package | Carton Boxes | |||||
Service | OEM |
