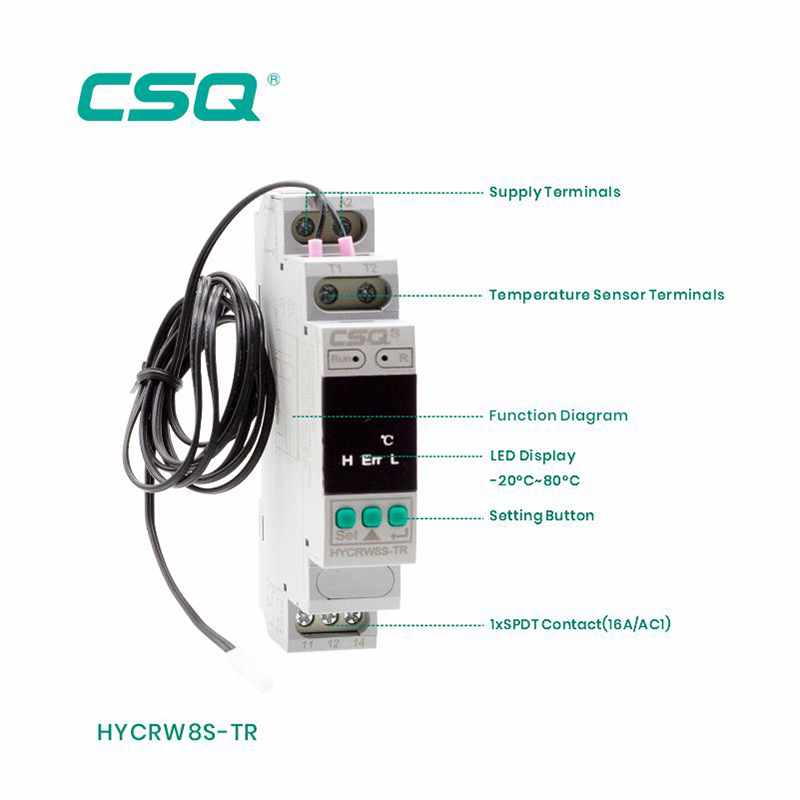

HYCRW8S
CSQ
Product Description
The temperature control relay is a temperature measurement and control instrument that can set
the temperature range and control mode, and is mainly used for temperature control and constant
temperature.
Technical Parameter
| Model | HYCRW8S-TR | HYCRW8S-HC |
| Function | Temperature range monitoring contro | Heating/cooling mode monitoring control |
| Output configuration | 1 x SPDT | |
| Working voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation 10% | |
| Indicator | Working indication: Green LED 0.5S flashes, Relay indication: R red LED real-time indication | |
| Setting method | Three-digit digital display, button adjustment, step size 1℃ | |
| Signal input | Thermal resistance: Pt100 | |
| Adjustment range | -20-80℃ resolution: 0.1 or 1℃ | |
| Lag value | 0.5-9.9℃ | |
| Measurement error | ± (2.0%FS+one word) | |
| Delay range | 0.5-19.9S | |
| Reset time | <500ms | |
| Contact capacity | 10/16A (AC1-resistive) | |
| Mechanical life | 1x 105 (resistive load, room temperature, 1s on 9s off) | |
| Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt spray and corrosive gas | |
| Atmospheric pressure | 86-106kPa | |
| Protection class | IP20 | |
| Installation method | 35mm Din rail type | |
