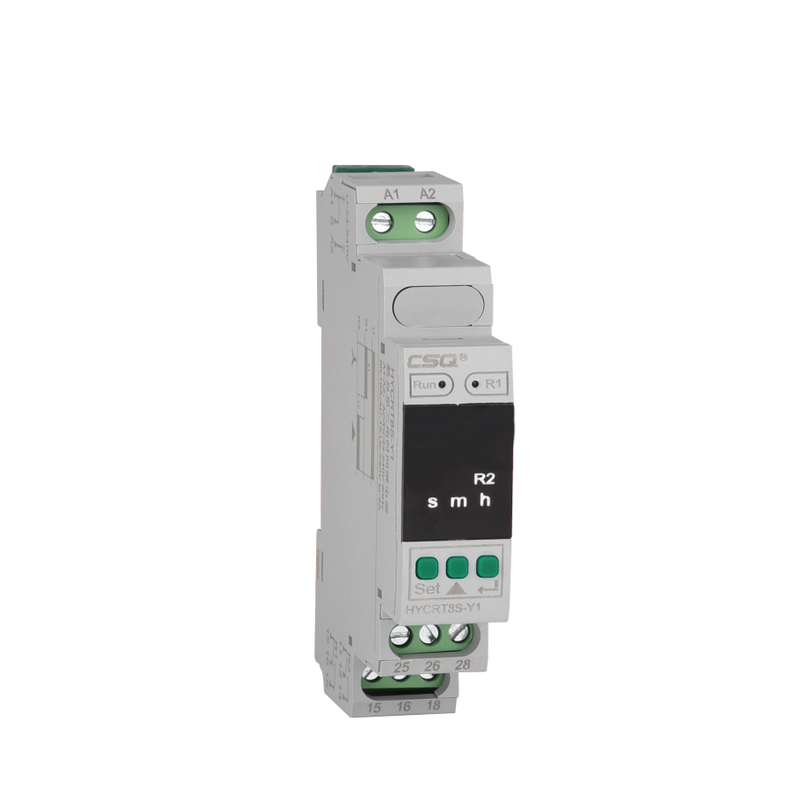

HYCRT8S-Y1
CSQ
Dedicated to motor star delta starter.
| Model(Rotary type) | HYCRT8-Y1 | HYCRT8-Y2 |
| Model(Digital display type) | HYCRT8S-Y1 | HYCRT8S-Y2 |
Output configuration | Two sets of output contacts | |
Wide voltage Operating Voltage Fixed voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation ±10% | AC100-380V(50-60Hz)/DC100-380V voltage fluctuation ±10% |
| AC220V(50-60Hz) voltage fluctuation ±20% | AC380V(50-60Hz) voltage fluctuation ±20% | |
Indicator light (Rotary type) | The red LED indicates the status of R1 in real time, the green LED is always on when R2 is closed, and flashes for 0.5S when R2 is disconnected to indicate that it is working in the running mode | |
Indicator light (digital display type) | Work indication: green LED0.5S flashing, relay indication: R1, R2 red LED real-time indication | |
Delay setting method | Rotary type (Rotary adjustment) Digital display type (digital display, button adjustment) | |
| Delay range (Rotary type) | t1 0.1s-10min (0.1s-10min), 4 gears adjustable t2 0.1s-1s (0.1s-1s) | |
| Delay range (digital display type) | t1 0.1s-99min (0.1s-99min), button adjustable t2 0.1s-9.9s (0.1s-9.9s) button adjustable | |
| Delay accuracy (Rotary type) | Basic error <1%, mechanical error <10%, repeat error <0.5% Temperature fluctuation error <0.05%/℃, voltage jump error <1% | |
| Delay accuracy (digital display type) | Basic error <1%, repeat error <0.5% Temperature fluctuation error <0.05%/℃, voltage jump error <1% | |
Output contact capacity | Wide voltage Power supply | 10/16A（AC1-Resistive） |
Fixed voltage Power supply | 3/5A（AC1-Resistive） | |
| Mechanical life | 1x105 (resistive load, room temperature, 1s on and 9s off) | |
| Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive gas | |
| Installation method | 35mm din rail type | |
Dedicated to motor star delta starter.
| Model(Rotary type) | HYCRT8-Y1 | HYCRT8-Y2 |
| Model(Digital display type) | HYCRT8S-Y1 | HYCRT8S-Y2 |
Output configuration | Two sets of output contacts | |
Wide voltage Operating Voltage Fixed voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation ±10% | AC100-380V(50-60Hz)/DC100-380V voltage fluctuation ±10% |
| AC220V(50-60Hz) voltage fluctuation ±20% | AC380V(50-60Hz) voltage fluctuation ±20% | |
Indicator light (Rotary type) | The red LED indicates the status of R1 in real time, the green LED is always on when R2 is closed, and flashes for 0.5S when R2 is disconnected to indicate that it is working in the running mode | |
Indicator light (digital display type) | Work indication: green LED0.5S flashing, relay indication: R1, R2 red LED real-time indication | |
Delay setting method | Rotary type (Rotary adjustment) Digital display type (digital display, button adjustment) | |
| Delay range (Rotary type) | t1 0.1s-10min (0.1s-10min), 4 gears adjustable t2 0.1s-1s (0.1s-1s) | |
| Delay range (digital display type) | t1 0.1s-99min (0.1s-99min), button adjustable t2 0.1s-9.9s (0.1s-9.9s) button adjustable | |
| Delay accuracy (Rotary type) | Basic error <1%, mechanical error <10%, repeat error <0.5% Temperature fluctuation error <0.05%/℃, voltage jump error <1% | |
| Delay accuracy (digital display type) | Basic error <1%, repeat error <0.5% Temperature fluctuation error <0.05%/℃, voltage jump error <1% | |
Output contact capacity | Wide voltage Power supply | 10/16A（AC1-Resistive） |
Fixed voltage Power supply | 3/5A（AC1-Resistive） | |
| Mechanical life | 1x105 (resistive load, room temperature, 1s on and 9s off) | |
| Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive gas | |
| Installation method | 35mm din rail type | |
