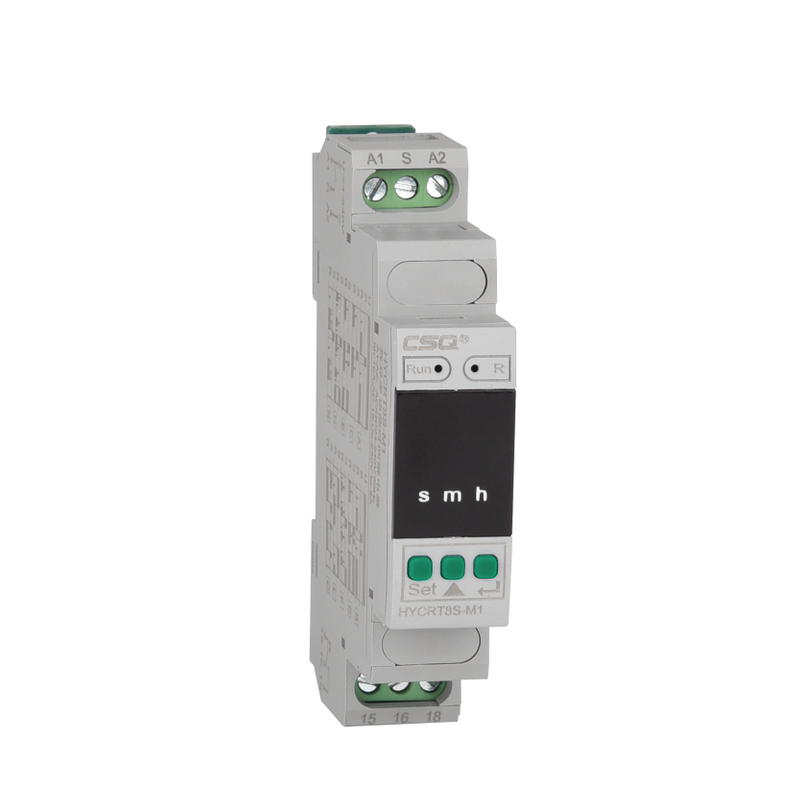

HYCRT8S-M1
CSQ
HYCRT8S-M1 the multifunction timer relay is a settable time control unit. Combined with other electrical equipment, it can set the delay closing or delay opening contacts according to the required time (10 kinds of functions can be selected independently), so that the working time of the terminal equipment can be adjusted. Controllable. Mainly used in industrial equipment, lighting, manufacturing and other occasions requiring time control.
Model (Rotary type) | HYCRT8-M1 | HYCRT8-M2 | HYCRT8-M3 |
Model (Digital display type) | HYCRT8S-M1 | HYCRT8S-M2 | HYCRT8S-M3 |
Output configuration | One set of delay | Two sets of delay | One set of delay plus one set of instantaneous |
Operating voltage | AC24-240V(5060Hz)/DC24-240V voltage fluctuation ±10% | ||
AC220V(50-60Hz) voltage fluctuation ±20% | |||
Indicator light | Work indication: Green LED0.5S flashing, relay indication: R1 red LED real-time indication | ||
Delay setting method | Rotary type( Rotary adjustment); Digital display type(Digital display, button adjustment) | ||
Delay range(Rotary type) | 0.1S-10d (0.1 seconds-10 days), adjustable in multiple gears | ||
Delay range(Digital display type) | 0.1S-99h (0.1 seconds-99 hours), button adjustable | ||
Delay accuracy (Rotary type) | Basic error <1%, mechanical error <10%, repeat error <0.5%, Temperature fluctuation error <0.05%/℃, voltage jump error <1% | ||
Delay accuracy (Digital display type) | Basic error <1%, repeat error <0.5%, Temperature fluctuation error <0.05%/℃, voltage jump error <1% | ||
Reset time | <500ms | ||
Output contact capacity | AC/DC24-240V Power supply | 10/16A (AC1-Resistive) | |
AC220V Power supply | 3/5A (AC1-Resistive) | ||
Mechanical life | 1x105 (Resistive load, room temperature, 1s on and 9s off | ||
Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive gas | ||
Installation method | 35mm Din rail type |
HYCRT8S-M1 the multifunction timer relay is a settable time control unit. Combined with other electrical equipment, it can set the delay closing or delay opening contacts according to the required time (10 kinds of functions can be selected independently), so that the working time of the terminal equipment can be adjusted. Controllable. Mainly used in industrial equipment, lighting, manufacturing and other occasions requiring time control.
Model (Rotary type) | HYCRT8-M1 | HYCRT8-M2 | HYCRT8-M3 |
Model (Digital display type) | HYCRT8S-M1 | HYCRT8S-M2 | HYCRT8S-M3 |
Output configuration | One set of delay | Two sets of delay | One set of delay plus one set of instantaneous |
Operating voltage | AC24-240V(5060Hz)/DC24-240V voltage fluctuation ±10% | ||
AC220V(50-60Hz) voltage fluctuation ±20% | |||
Indicator light | Work indication: Green LED0.5S flashing, relay indication: R1 red LED real-time indication | ||
Delay setting method | Rotary type( Rotary adjustment); Digital display type(Digital display, button adjustment) | ||
Delay range(Rotary type) | 0.1S-10d (0.1 seconds-10 days), adjustable in multiple gears | ||
Delay range(Digital display type) | 0.1S-99h (0.1 seconds-99 hours), button adjustable | ||
Delay accuracy (Rotary type) | Basic error <1%, mechanical error <10%, repeat error <0.5%, Temperature fluctuation error <0.05%/℃, voltage jump error <1% | ||
Delay accuracy (Digital display type) | Basic error <1%, repeat error <0.5%, Temperature fluctuation error <0.05%/℃, voltage jump error <1% | ||
Reset time | <500ms | ||
Output contact capacity | AC/DC24-240V Power supply | 10/16A (AC1-Resistive) | |
AC220V Power supply | 3/5A (AC1-Resistive) | ||
Mechanical life | 1x105 (Resistive load, room temperature, 1s on and 9s off | ||
Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive gas | ||
Installation method | 35mm Din rail type |
