HYCRT8S-2T
CSQ

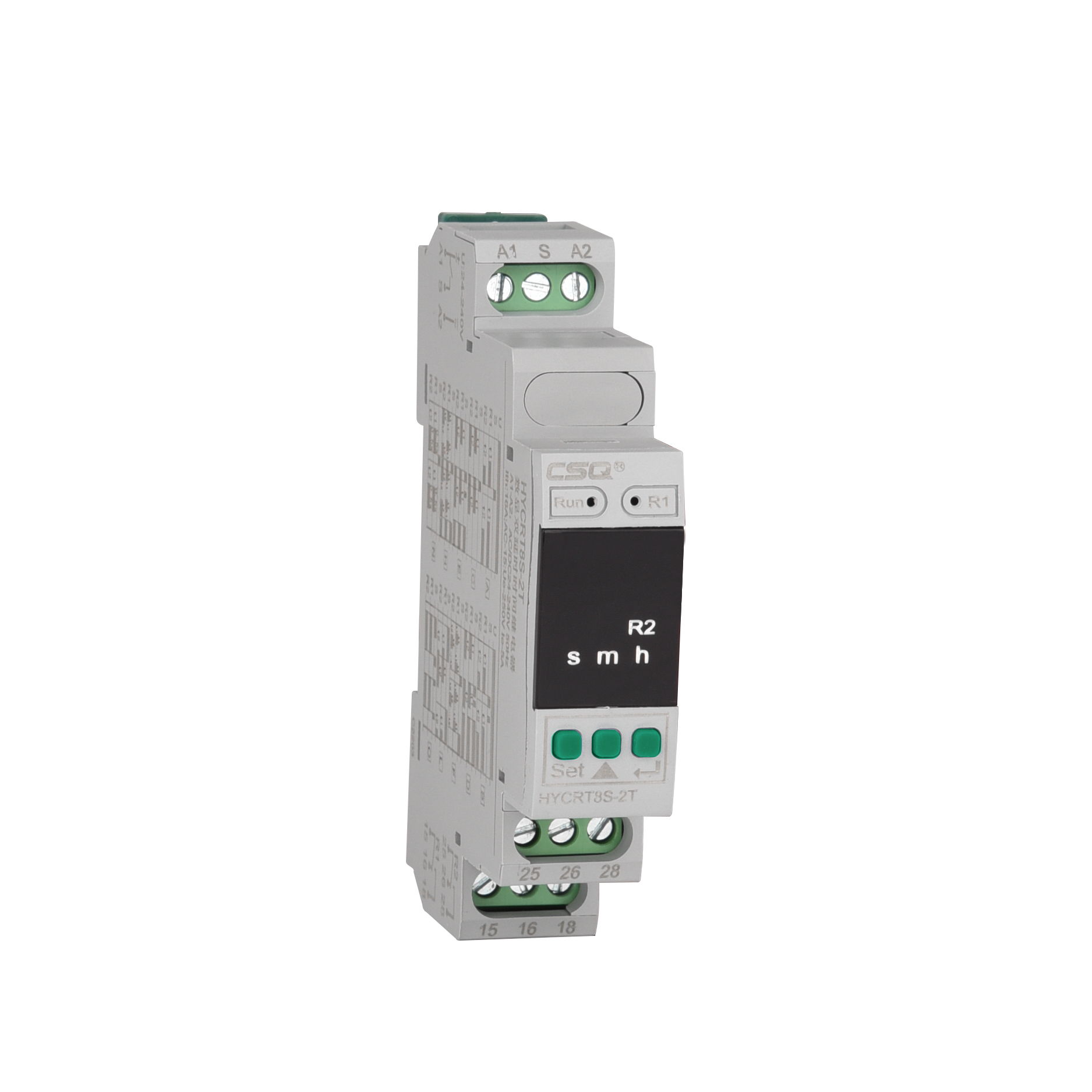

HYCRT8S-2T double delay timer relay is a settable time control unit. Combined with other electrical equipment, it can set delay closing or delay opening contacts according to the required time, so that the working time of the terminal equipment can be controlled. Group on-off delay time, separate control loop, make the control equipment run off-peak. Mainly used in industrial equipment, lighting, manufacturing and other occasions requiring time control.
Model(Rotary type) | HYCRT8-2TA | HYCRT8-2TB |
Model(Digital display type) | HYCRT8S-2T (10 kinds of functions can be set independently) | |
Features | Power-on delay | Delay disconnect |
Output configuration | Two sets of delays: t1 delay control R1, t2 delay control R2 | |
Operating Voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation ±10% | |
AC220V(50-60Hz) Voltage fluctuation ±20% | ||
Indicator light (Rotary type) | The red LED indicates the status of R1 in real time, the green LED is always on when R2 is closed, and flashes for 0.5S when R2 is disconnected to indicate that it is working in the running mode | |
Indicator light (digital display type) | Work indication: green LED0.5S flashing, relay indication: R1, R2 red LED real-time indication | |
Delay setting method | Rotary type (Rotary adjustment) Digital display type (digital display, button adjustment) | |
Delay range (Rotary type) | 0.1S-10d (0.1 seconds-10 days), adjustable in multiple gears | |
Delay range (digital display type) | 0.1S-99h (0.1 seconds-99 hours), button adjustable | |
Delay accuracy (Rotary type) | Basic error <1%, mechanical error <10%, repeat error <0.5% Temperature fluctuation error <0.05%/℃, voltage jump error <1% | |
Delay accuracy (digital display type) | Basic error <1%, repeat error <0.5% Temperature fluctuation error <0.05%/℃, voltage jump error <1% | |
Reset time | <500ms | |
Output contact capacity | AC/DC24-240V Power supply | 10/16A(AC1-Resistive) |
AC220V Power supply | 3/5A(AC1-Resistive) | |
Mechanical life | 1x105 (resistive load, room temperature, 1s on and 9s off) | |
Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive gas | |
Installation method | 35mm din rail type |
HYCRT8S-2T double delay timer relay is a settable time control unit. Combined with other electrical equipment, it can set delay closing or delay opening contacts according to the required time, so that the working time of the terminal equipment can be controlled. Group on-off delay time, separate control loop, make the control equipment run off-peak. Mainly used in industrial equipment, lighting, manufacturing and other occasions requiring time control.
Model(Rotary type) | HYCRT8-2TA | HYCRT8-2TB |
Model(Digital display type) | HYCRT8S-2T (10 kinds of functions can be set independently) | |
Features | Power-on delay | Delay disconnect |
Output configuration | Two sets of delays: t1 delay control R1, t2 delay control R2 | |
Operating Voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation ±10% | |
AC220V(50-60Hz) Voltage fluctuation ±20% | ||
Indicator light (Rotary type) | The red LED indicates the status of R1 in real time, the green LED is always on when R2 is closed, and flashes for 0.5S when R2 is disconnected to indicate that it is working in the running mode | |
Indicator light (digital display type) | Work indication: green LED0.5S flashing, relay indication: R1, R2 red LED real-time indication | |
Delay setting method | Rotary type (Rotary adjustment) Digital display type (digital display, button adjustment) | |
Delay range (Rotary type) | 0.1S-10d (0.1 seconds-10 days), adjustable in multiple gears | |
Delay range (digital display type) | 0.1S-99h (0.1 seconds-99 hours), button adjustable | |
Delay accuracy (Rotary type) | Basic error <1%, mechanical error <10%, repeat error <0.5% Temperature fluctuation error <0.05%/℃, voltage jump error <1% | |
Delay accuracy (digital display type) | Basic error <1%, repeat error <0.5% Temperature fluctuation error <0.05%/℃, voltage jump error <1% | |
Reset time | <500ms | |
Output contact capacity | AC/DC24-240V Power supply | 10/16A(AC1-Resistive) |
AC220V Power supply | 3/5A(AC1-Resistive) | |
Mechanical life | 1x105 (resistive load, room temperature, 1s on and 9s off) | |
Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive gas | |
Installation method | 35mm din rail type |
