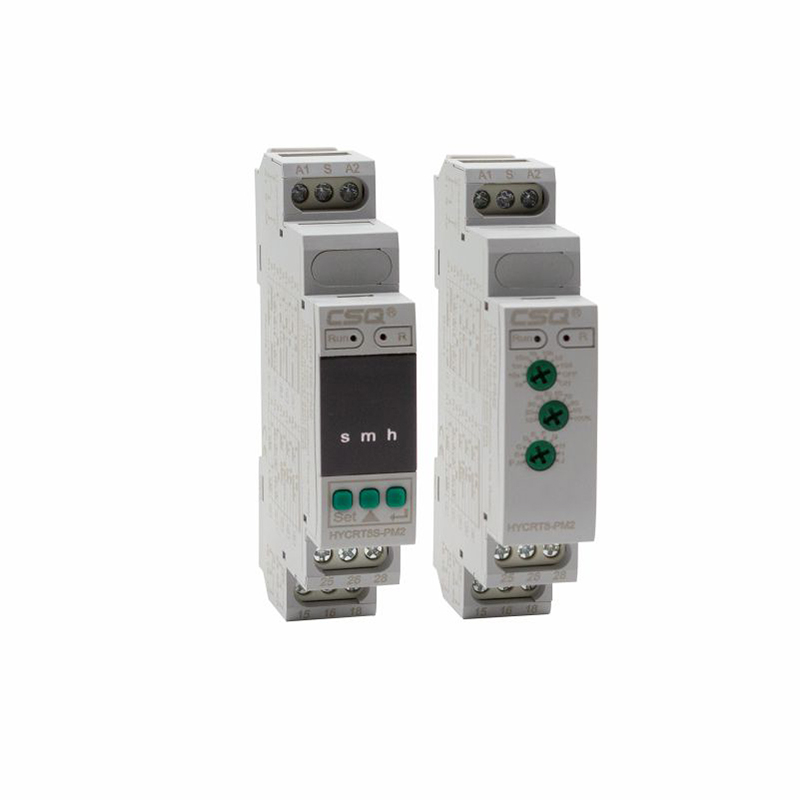

HYCRT8-PM
CSQ
Product Description
Time relay is a settable time control unit. Combined with other electrical equipment, it can set delay
closing or delay opening contacts according to the required time and function, so that the working
time of terminal equipment can be controlled.
Technical Parameter
| Model(Rotary type) | HYCRT8-PM1 | HYCRT8-PM2 |
| Model(Digital display type) | HYCRT8S-PM1 | HYCRT8S-PM2 |
| Output configuration | 1 x SPDT | 2 x SPDT |
| Function | 10 functions are optional (triggered by S terminal) | |
| Working voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation ±10% | |
| AC220V (50-60Hz) voltage fluctuation ± 20% | ||
| Indicator | Working indication: Green LED 0.5S flashes, Relay indication: R red LED real-time indication | |
| Delay setting method | Rotary adjustment | Digital display, button adjustment |
| Delay range | 0.1s-10d multi gears adjustable | 0.1s-99h |
| Delay accuracy | Basic error<1%, mechanical error<10% | Basic error<1%, |
| Repeat error<0.5%, temperature fluctuation error<0.05%/℃, voltage jump error<0.5% | ||
| Reset time | <500ms | |
| Output contact capacity | AC/DC24-240V power supply | 10/16A (AC1-resistive) |
| AC220V power supply | 3/5A (AC1-resistive) | |
| Mechanical life | 1x105 (resistive load, room temperature, 1s on 9s off) | |
| Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters,Storage temperature: -20-75℃, no rain, snow, salt spray and corrosive gas | |
| Protection class | IP20 | |
| Installation method | 35mm Din rail type | |
