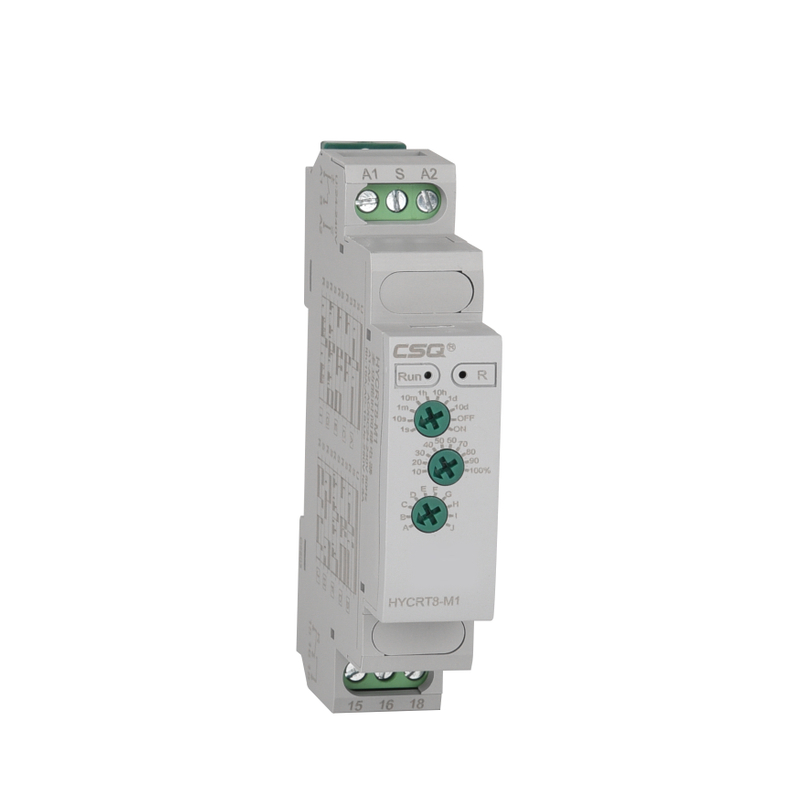

HYCRT8-M1 Multifunction Timer Relay

Model: HYCRT8-M1
Item: Multifunction Timer Relay
10 functions for choose.
Delay range: 0.1s-10d. adjustable in multiple gears.
  • HYCRT8-M1

  • CSQ

 HYCRT8-M1 the multifunction timer relay is a settable time control unit. Combined with other electrical equipment, it can set the delay closing or delay opening contacts according to the required time (10 kinds of functions can be selected independently), so that the working time of the terminal equipment can be adjusted. Controllable. Mainly used in industrial equipment, lighting, manufacturing and other occasions requiring time control.

Model (Rotary type) HYCRT8-M1 HYCRT8-M2 HYCRT8-M3
Model (Digital display type) HYCRT8S-M1 HYCRT8S-M2 HYCRT8S-M3
Output configuration One set of delay Two sets of delay One set of delay plus one set of instantaneous

Operating voltage

AC24-240V(5060Hz)/DC24-240V voltage fluctuation ±10%
AC220V(50-60Hz) voltage fluctuation ±20%
Indicator light

Work indication: Green LED0.5S flashing, relay indication: R1 red LED real-time indication

Delay setting method Rotary type( Rotary adjustment); Digital display type(Digital display, button adjustment)
Delay range(Rotary type)

0.1S-10d (0.1 seconds-10 days), adjustable in multiple gears

Delay range(Digital display type) 0.1S-99h (0.1 seconds-99 hours), button adjustable
Delay accuracy (Rotary type)

 Basic error <1%, mechanical error <10%, repeat error <0.5%,

Temperature fluctuation error <0.05%/℃, voltage jump error <1%

Delay accuracy (Digital display type) Basic error <1%,  repeat error <0.5%,

Temperature fluctuation error <0.05%/℃, voltage jump error <1%

Reset time


Output contact capacity

AC/DC24-240V Power supply

10/16A (AC1-Resistive)

AC220V Power supply

3/5A (AC1-Resistive)

Mechanical life

1x105 (Resistive load, room temperature, 1s on and 9s off


Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters

Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive gas

Installation method

35mm Din rail type
