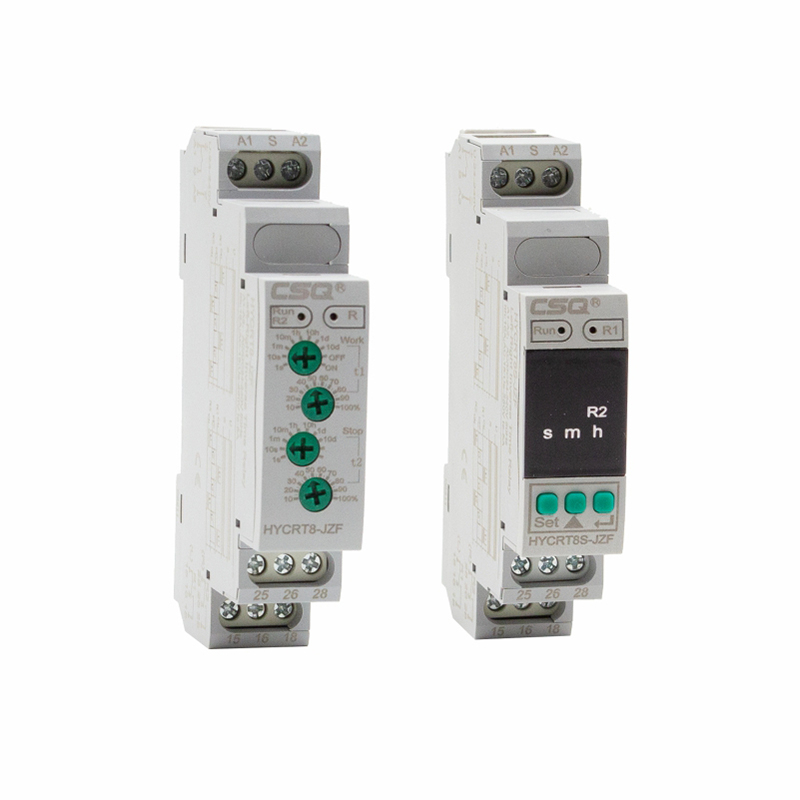

HYCRT8-JZF
CSQ
Product Description
The forward and reverse automatic cycle controller is a time control unit that can be set. According tothe required time, the output contacts are alternately cycled to control the switch state of the electricalequipment, so that the working time of the terminal equipment can be controlled, Mainly used in electricaautomation equipment, street light switch, AC motor control, etc.
Technical Parameter
| Model | HYCRT8-JZF(Rotary type) | HYCRT8S-JZF(Digital type) |
| Output configuration | 2 x SPDT | |
| Function | Control the load to start (shut down) work in turn | |
| Operating voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation 10% | |
| Indicator | The green LED indicator is always onwhen R2 is closed, and flashes for 0.5swhen R2 is disconnected to indicatethat it is in the running mode | R2 real time indicator |
| Red LED indicates R1 status in real time | ||
| Delay setting method | Rotary adjustment | Digital display, button adjustment |
| Delay range | 0.1s-10d | 0.1s-99h |
| Delay accuracy | Mechanical error<10%, basicerror<1% | Basic error<1% |
| Repeat error<0.5%, temperature fluctuation error<0.05%/C , voltagejump error<0.5% | ||
| Reset time | <500ms | |
| Output contact capacity | 10/16A(AC1-resistive) | |
| Mechanical life | 1x10°(resistive load, room temperature, 1s on 9s off) | |
| Environment | Working temperature: -10-55C Relative humidity: s 85% Altitude:s 2000 metersStorage temperature: -20-75C , no rain, snow, salt spray and corrosivegas | |
| Protection class | IP20 | |
| Installation method | 35mm Din rail type | |
