Product description
The switching status of electrical equipment can be controlled from multiple diferent locations (such as'controlling the lighting can replace the multi-way switch) and the wiring is simple. Mainly used in industrialequipment, lighting, etc.
Technical parameter

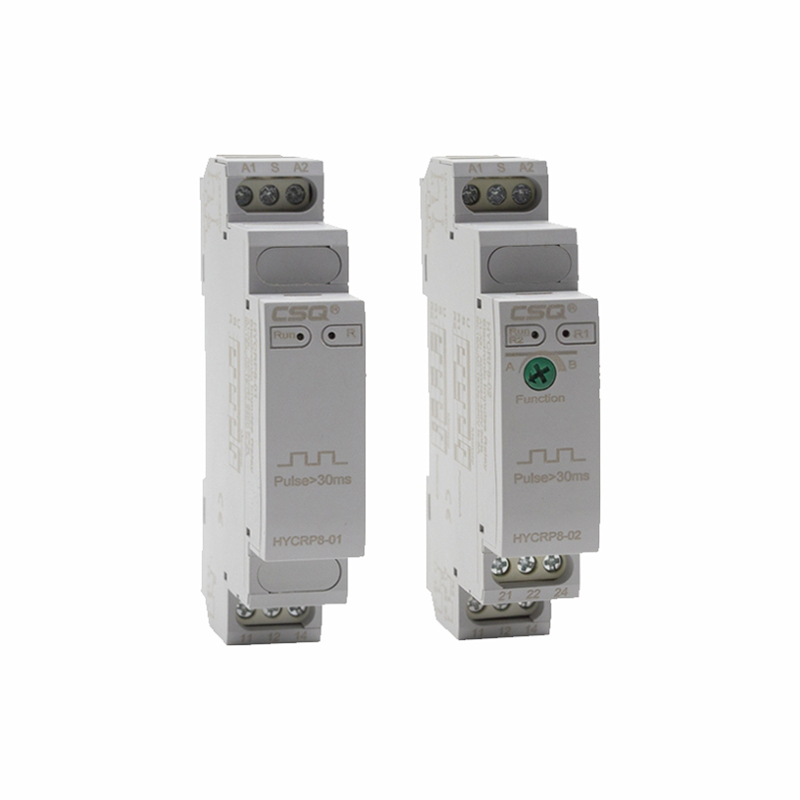

Model | HYCRP8-01 | HYCRP8-02 |
Function | Give impulse signal output contact state switching | |
Output contact | 1 x SPDT | 2 X SPDT |
Operating Voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation 10% | |
Indicator | The red LED indicates the status of R1 in real time, and the green LEDindicator is always on when R2 is closed.When R2 is disconnected, it will flash for 0.5S to indicate that it isworking in the running mode | |
Setting method | Rotary function switching (02 type only) | |
Control terminal | A1-S | |
Control Signal Width | Min 30ms | |
Output contact capacity | 10/16A(AC1-resistive) | |
Mechanical life | 1x10' (Resistive load, room temperature, 1s on 9s off) | |
Environment | Working temperature: -10-55C Relative humidity: s 85% Altitude: 2000 metersStorage temperature: -20-75'C , no rain, snow, salt spray and corrosivegas | |
Protection degree | IP20 | |
Installation method | 35mm Din rail type |
Product description
The switching status of electrical equipment can be controlled from multiple diferent locations (such as'controlling the lighting can replace the multi-way switch) and the wiring is simple. Mainly used in industrialequipment, lighting, etc.
Technical parameter
Model | HYCRP8-01 | HYCRP8-02 |
Function | Give impulse signal output contact state switching | |
Output contact | 1 x SPDT | 2 X SPDT |
Operating Voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation 10% | |
Indicator | The red LED indicates the status of R1 in real time, and the green LEDindicator is always on when R2 is closed.When R2 is disconnected, it will flash for 0.5S to indicate that it isworking in the running mode | |
Setting method | Rotary function switching (02 type only) | |
Control terminal | A1-S | |
Control Signal Width | Min 30ms | |
Output contact capacity | 10/16A(AC1-resistive) | |
Mechanical life | 1x10' (Resistive load, room temperature, 1s on 9s off) | |
Environment | Working temperature: -10-55C Relative humidity: s 85% Altitude: 2000 metersStorage temperature: -20-75'C , no rain, snow, salt spray and corrosivegas | |
Protection degree | IP20 | |
Installation method | 35mm Din rail type |
