HYCRLV8
CSQ
According to the set voice control intensity threshold, control the switch of electrical equipment. Mainly used in corridors, outdoors, corridors and other equipment that need to be opened during special periods.

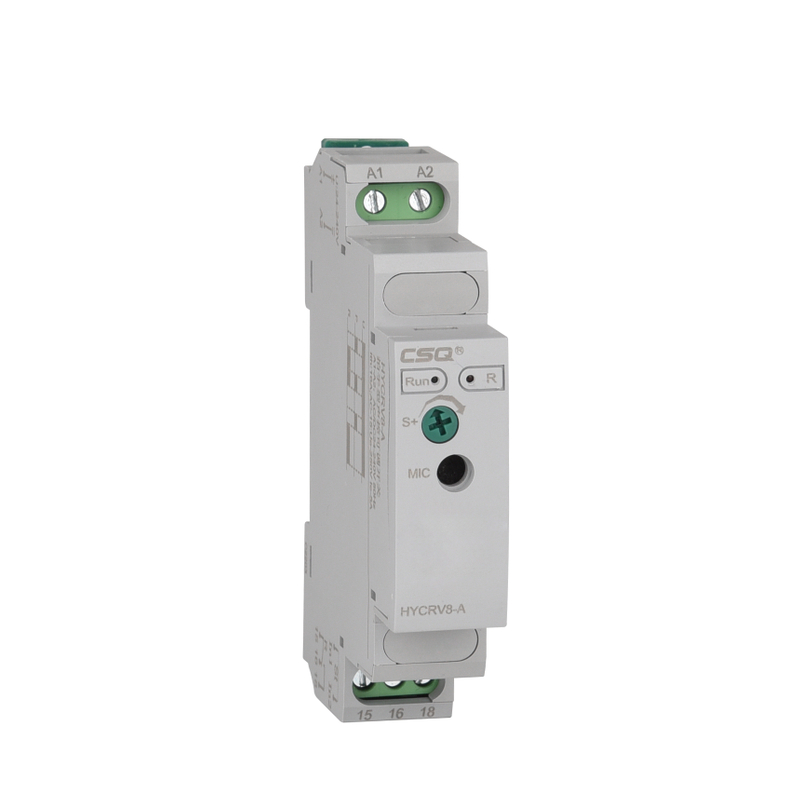

| Model | HYCRV8-A (Clap switch) | HYCRV8-B(Voice control delay switch) | HYCRLV8(Voice and light control delay switch) |
| Features | Voice on - Voice off loop | The pull-in relay is delayed for 20-60 seconds, disconnected, and the time is adjustable | No action when there is light, HYCRV8-B function will be realized when there is no light |
| Operating voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation ±10% AC220V (50-60Hz) voltage fluctuation ±20% | ||
| Indicator light | Work indication: green LED is always on, relay indication: red LED real-time indication | ||
Sensitivity setting method | Rotary adjustment (≈20-90dB) | ||
Voice control, delay error | ±20% | ||
Sensor response range | ≤4m | ||
Response time | <500ms | ||
Output contact capacity | AC/DC24-240V Power supply | 10/16A（AC1-Resistive） | |
| AC220V Power supply | 3/5A（AC1-Resistive） | ||
| Mechanical life | 1x105 (resistive load, room temperature, 1s on and 9s off) | ||
| Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive gas | ||
| Installation method | 35mm din rail type | ||
Type A: Clap your hands after power-on, the relay is closed, the R light is on, and the relay is turned off, and the R light is off, and so on (interval <1S));
Type B: After power-on, the relay R first closes a multiple of the delay time (if the delay is set to 20 seconds, the relay is closed for 40 seconds after power-on), then goes out, clap your hands, the relay is closed, the R light is on, and the delay is 20 -60 seconds (time adjustable) the relay is disconnected and the R light is off.
HYCRLV8 type: After power-on, there is light and no action, and the function of type B is realized when there is no light.
