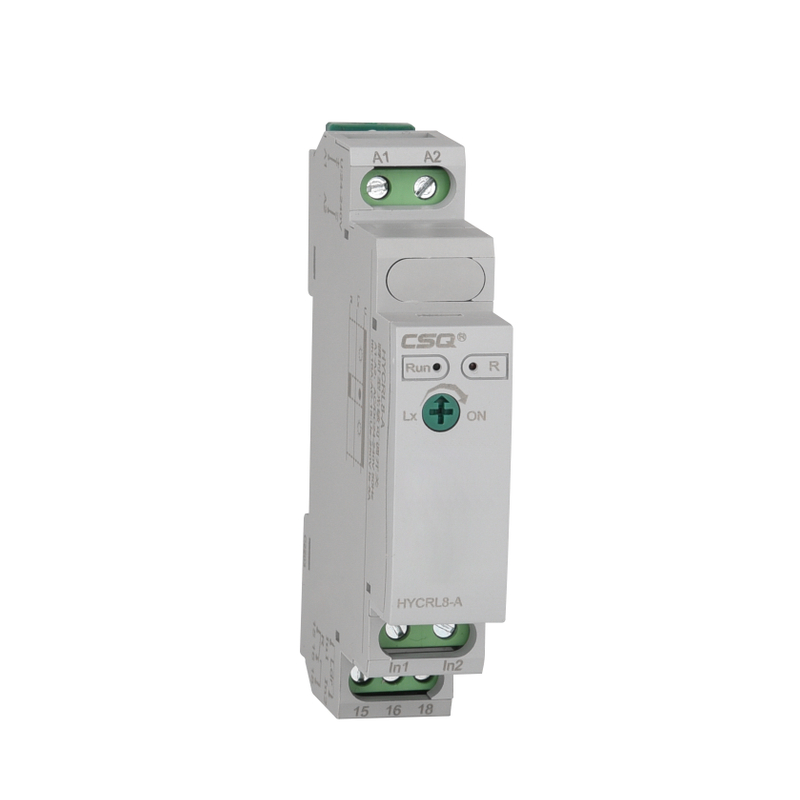

HYCRL8-A
CSQ
According to the set illuminance threshold, automatically control the switch of electrical equipment. Mainly used in corridors, outdoor, street lights and other equipment that need to be automatically turned on at night.
| Model | HYCRL8-A | HYCRL8-B |
| Features | Instantaneous relay pulls in and disconnects | Delay~10 seconds relay pull in, momentarily disconnects |
| Operating voltage | AC24-240V(50-60Hz)/DC24-240V voltage fluctuation ±10% AC220V (50-60Hz) voltage fluctuation ±20% | |
| Indicator light | Work indication: green LED is always on, relay indication: red LED real-time indication | |
| Sensitivity setting method | Rotary adjustment | |
Sensor error | ±35% | |
Sensor lead length | Up to 20 meters | |
| Reaction time | <1S | |
| Output contact capacity | AC/DC24-240V Power supply | 10/16A(AC1-Resistive) |
| AC220V Power supply | 3/5A(AC1-Resistive) | |
Mechanical life | 1x105 (resistive load, room temperature, 1s on and 9s off) | |
Environment | Working temperature: -10-55℃ Relative humidity: ≤85% Altitude: ≤2000 meters Storage temperature: -20-75℃, no rain, snow, salt fog and corrosive gas | |
Installation method | 35mm din rail type | |
Type A: When the light intensity threshold is sensed, the relay is opened or closed instantaneously, which is used for occasions requiring fast response;
Type B: When the light intensity threshold is sensed, the relay will be closed with a delay of ≈ 10-15 seconds, so as to prevent the light intensity from being in a critical state and the relay will operate frequently, which is suitable for general occasions.
