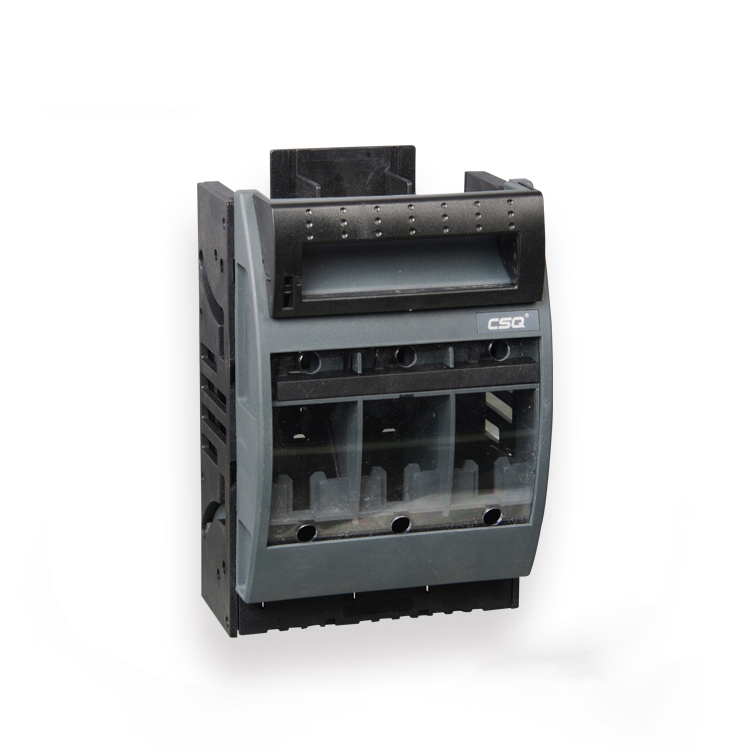

Model: HYCR17
Pole: 3
Rated Current: 30A-630A
Standard: IEC/EN 60947-1
HYCR17
CSQ
HYCR17 Fuse switch disconnector has following functions:
◆The load change over.The work speed and breaking capacity of the fuse is associated with the specific operation situation of the operator.
◆Fuse brake piece from the dynamic contact of the fuse
◆Fuse is installed in the fuse base
◆By manipulating the handle, the fuse base can operate the main active contact.
◆When the fuse base is in the OFF position(OFF).contacts can indicate information.
◆With DIN type blade industry fuse (NH),it can provide power distribution circuit with short circuit or overload protection.
Model | HYCR17 |
Rated Current Ie (A) | 30A~630A |
Rated Voltage Ue (V) | 220V/240V |
Working state | I-O |
Model of Fuse type | DIN NH000;DIN NH00;DIN NH1;DIN NH2;DIN NH 3 |
