HYCQ7-100PV Automatic Transfer Switch For Solar/Inverter

Model: HYCQ7-100PV
Pole: 2/4
Rated Current: 10A-100A
Standard: IEC/ EN 60974-3
MOQ:1PC
ODM & OEM
Availability:
  • HYCQ7-100PV

  • CSQ

HYCQ7 dual power automatic transfer switches are newly developed miniature household power transfer switches. This switch is mainly used to test whether the normal or backup power supply is normal. When the city power supply is abnormal, the backup power supply will work immediately to ensure the continuity, reliability and safety of the power supply. This product is specially designed for home track TV installation and is specially used for Pz30 distribution box.


Model

HYCQ7-100PV

Poles

2,4

Rated Current Ie (A)

10A~100A

Installation

Din rail

Rated insulation voltage Ui (V)

AC690, 50HZ

Rated working voltage Ue (V)

AC400, 50HZ

Rated impulse withstand voltage (KV)

8KV

Connecting and breaking

6.0Ie    1.05Ue      cosØ=0.50±0.05, 50 times

Operating performance

2.0Ie    1.05Ue     cosØ=0.80±0.05, 6000 times

Rated limited short-circuit current Iq

50KA

SCPD (FUSES )

RT16-00-63A

Control circuit

Rated supply voltage Us: AC220V, 50HZ.
Working condition:85% Us~110% Us

Ancillary circuit

Two isolated relays, each relay with 2 groups of passive
switch contact. Contact capacity: AC220 50Hz, Ie=5A

Switching time

<50ms

Action time

<50ms



automatic transfer switch dimensions

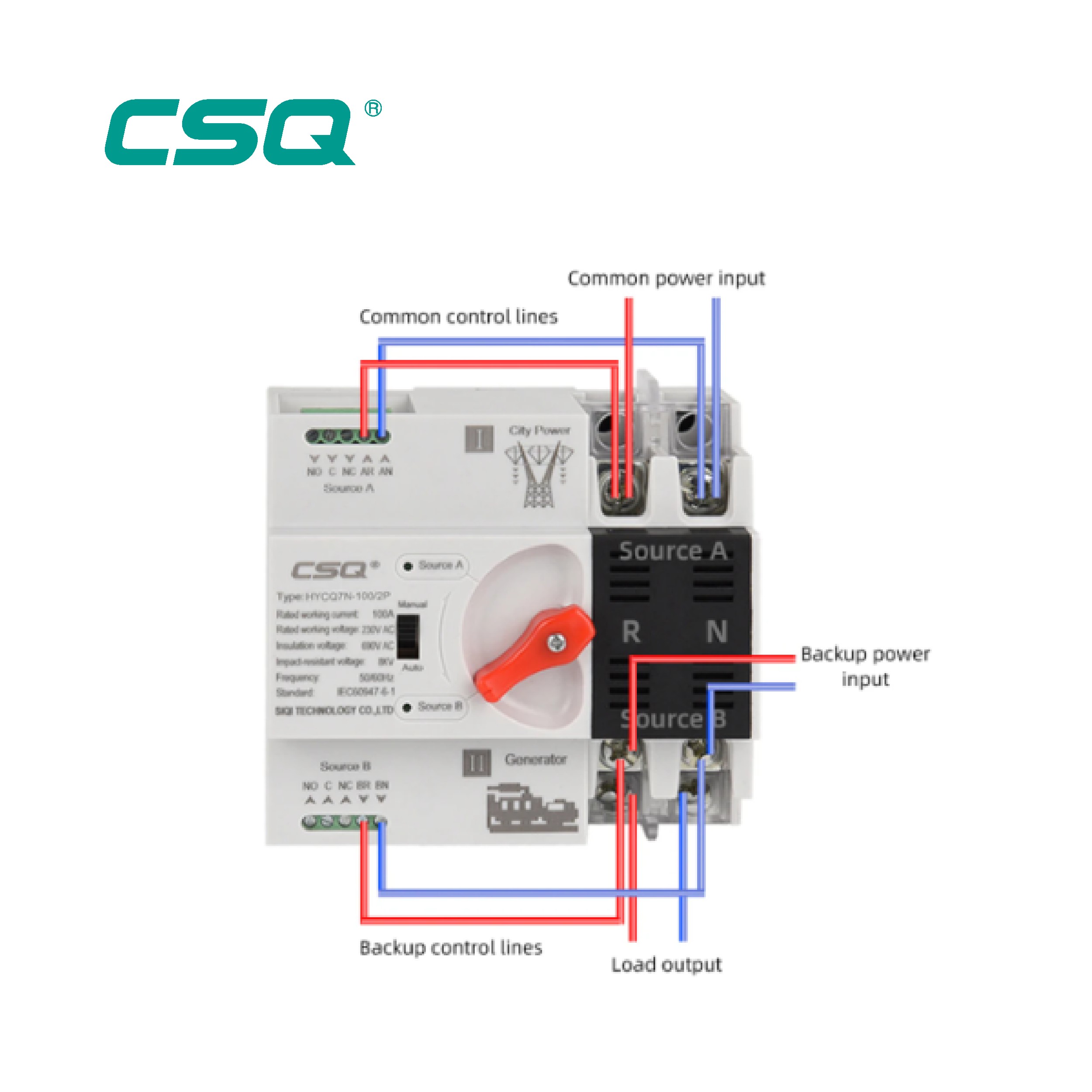

automatic transfer switch wiring diagram
