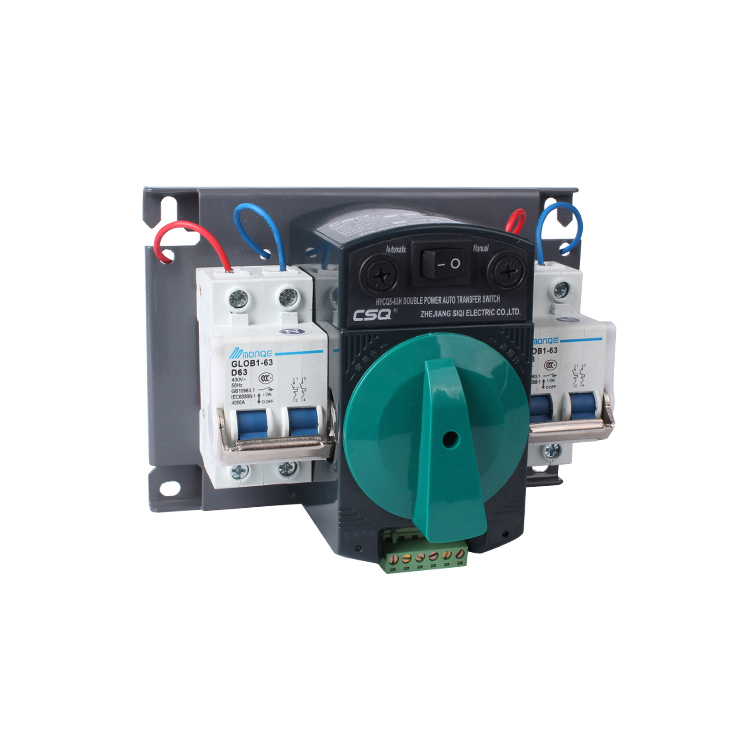

Model: HYCQ5-63H
Pole: 2/3/4
Rated Current: 6A-63A
Standard: IEC/ EN 60974-3
MOQ:1PC
HYCQ5
CSQ
Normal conditions for operation and installation:
Environmental Temperature Condition:-5~+40°C
Installation site is not more than 2000 meters above sea level.
Pollution Level: Grade 3
Installation Category: 3
Vertical installation or horizontal installation
Model | HYCQ5-63H | |
Rated Current Ie (A) | 6,10,16,20,25,32,40 | 50, 63 |
Electrical Appliances Class | CB | |
Use Category | AC~33B | |
Tripping Current | 5~10In (Type C), 10~15In (Type D), | |
Rated Voltage Ue | 220V (2P);380V (3P or 4P) | |
Rated Frequency | 50/60Hz | |
Rated short circuit connecting ability Icm (Peak) | 9.18KA | 6.615KA |
Rated short circuit breaking ability Icn (effective value) | 6KA | 4.5KA |
Normal conditions for operation and installation:
Environmental Temperature Condition:-5~+40°C
Installation site is not more than 2000 meters above sea level.
Pollution Level: Grade 3
Installation Category: 3
Vertical installation or horizontal installation
Model | HYCQ5-63H | |
Rated Current Ie (A) | 6,10,16,20,25,32,40 | 50, 63 |
Electrical Appliances Class | CB | |
Use Category | AC~33B | |
Tripping Current | 5~10In (Type C), 10~15In (Type D), | |
Rated Voltage Ue | 220V (2P);380V (3P or 4P) | |
Rated Frequency | 50/60Hz | |
Rated short circuit connecting ability Icm (Peak) | 9.18KA | 6.615KA |
Rated short circuit breaking ability Icn (effective value) | 6KA | 4.5KA |
