HYCG8
CSQ

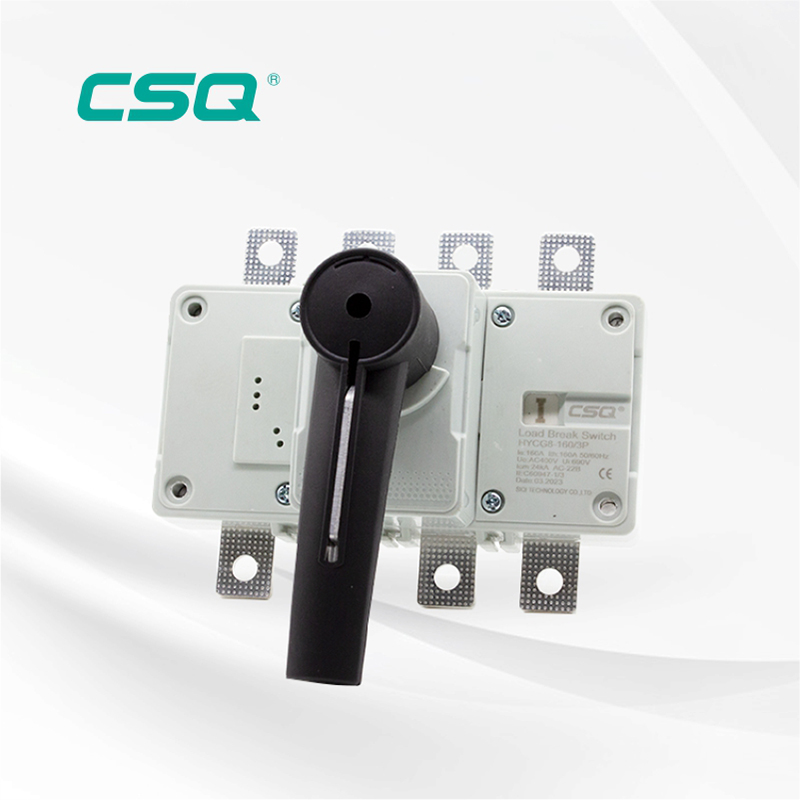

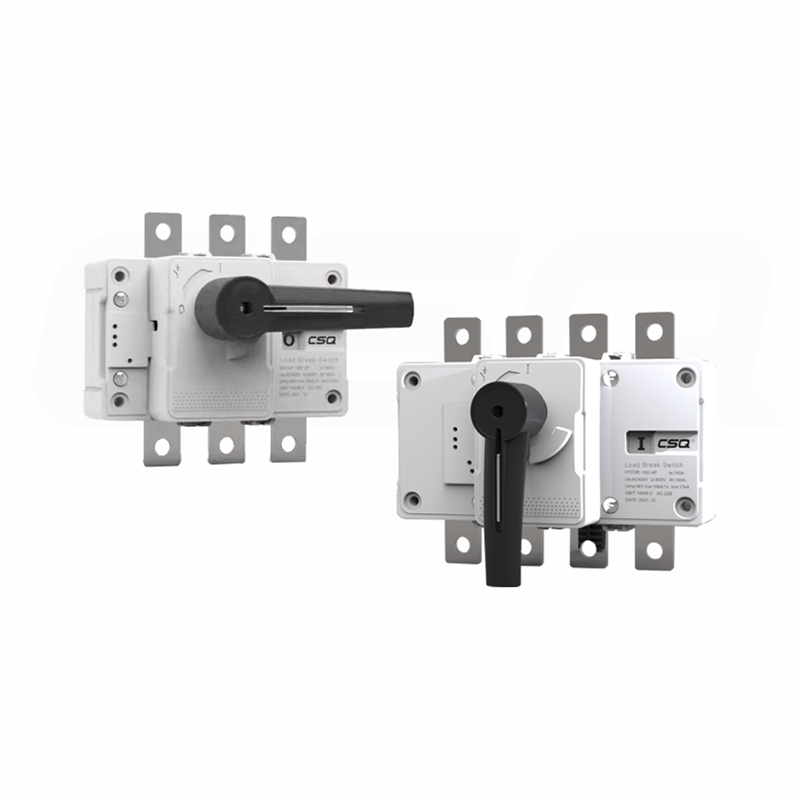

HYCG8 series load break switches are suitable for AC 50Hz, rated voltage up to 660, DC voltage up to440V, agreed heating current up to 3200A power distribution equipment in industrial enterprises , usedfor infrequent switching and breaking circuit and electrical isolation , widely used in construction , power ,petrochemical and other industries of power distribution systems and automation systems ,The switch complies with IEC60947-3 and GB14048.3 standards .The switch selection is beautiful , novel and simple , small size , full function , is the best choice of similarproducts !
Current | 160A | 250A | 630A | 1600A | 3200A |
Rated insulation voltage Ui | 690V | ||||
Rated impaction withstand voltage Uimp | 8KV | ||||
Rated working voltage Ue | AC380V | ||||
Rated working current Ie | 160A | 250A | 630A | 1600A | 3200A |
Position | I-O | ||||
Rated making capacity | 10Ie | ||||
Rated breaking capacity | 8Ie | ||||
Rated limting short-circuit current | 50KA | ||||
Rated short time withstand current Ie | 7KA | ||||
Poles | 3p & 4p | ||||
Voltage of control power supply | AC220V | ||||
Energy consumption of the motor | 40W |
HYCG8 series load break switches are suitable for AC 50Hz, rated voltage up to 660, DC voltage up to440V, agreed heating current up to 3200A power distribution equipment in industrial enterprises , usedfor infrequent switching and breaking circuit and electrical isolation , widely used in construction , power ,petrochemical and other industries of power distribution systems and automation systems ,The switch complies with IEC60947-3 and GB14048.3 standards .The switch selection is beautiful , novel and simple , small size , full function , is the best choice of similarproducts !
Current | 160A | 250A | 630A | 1600A | 3200A |
Rated insulation voltage Ui | 690V | ||||
Rated impaction withstand voltage Uimp | 8KV | ||||
Rated working voltage Ue | AC380V | ||||
Rated working current Ie | 160A | 250A | 630A | 1600A | 3200A |
Position | I-O | ||||
Rated making capacity | 10Ie | ||||
Rated breaking capacity | 8Ie | ||||
Rated limting short-circuit current | 50KA | ||||
Rated short time withstand current Ie | 7KA | ||||
Poles | 3p & 4p | ||||
Voltage of control power supply | AC220V | ||||
Energy consumption of the motor | 40W |
