Availability: | |
---|---|
◆ With isolation function
◆ On or Breaking Position can be visible so state of the switch is easy known
◆ It can be overload and short circuit current for a moment
◆ It can be transferred with load
◆ Reliable mechanical interlock and padlock function
◆ It has three stable positions: I-O-II
◆ Operation handle can be directly mounted on the switch or on the door of panel board
◆ 16-125A Switch can be installed on the DIN-rail

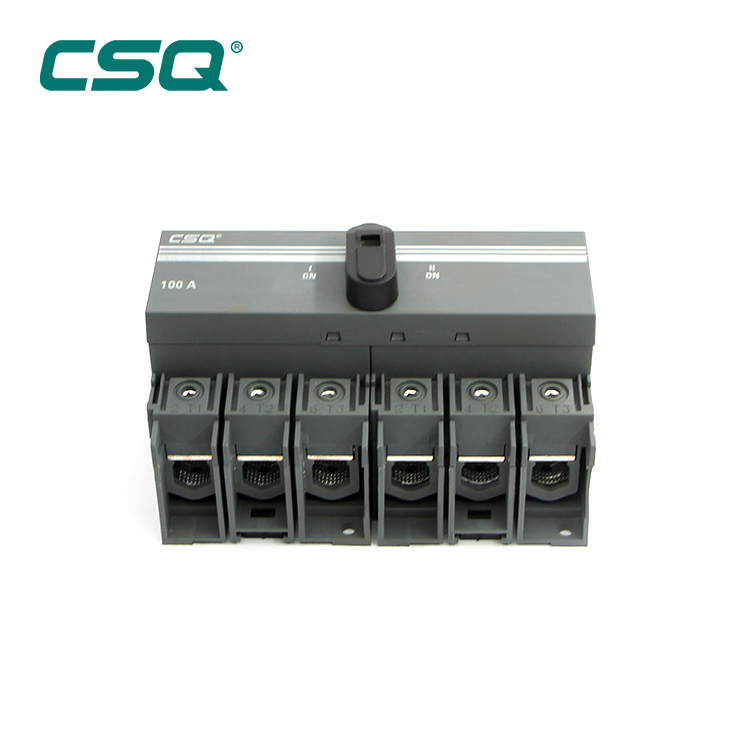

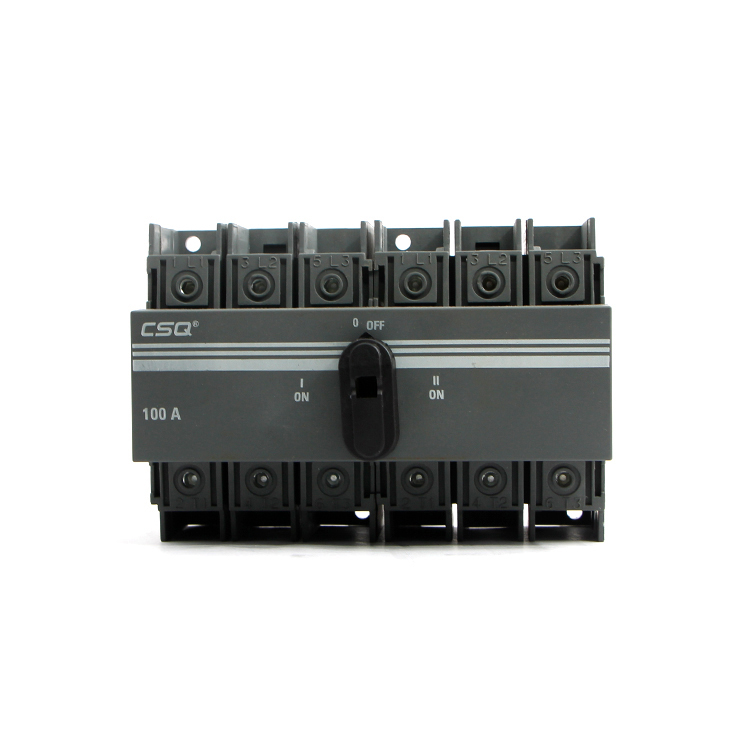

Model | HYCG3 |
Rated Current Ie (A) | 30A~800A |
Rated Voltage Ue (V) | 220V/240V |
Working state | I-O-II |
Pole | 3,4 |
Copper Bridge for outlet terminal of the switch | Copper Bridge for load side can be assemble according to the demand |
◆ With isolation function
◆ On or Breaking Position can be visible so state of the switch is easy known
◆ It can be overload and short circuit current for a moment
◆ It can be transferred with load
◆ Reliable mechanical interlock and padlock function
◆ It has three stable positions: I-O-II
◆ Operation handle can be directly mounted on the switch or on the door of panel board
◆ 16-125A Switch can be installed on the DIN-rail
Model | HYCG3 |
Rated Current Ie (A) | 30A~800A |
Rated Voltage Ue (V) | 220V/240V |
Working state | I-O-II |
Pole | 3,4 |
Copper Bridge for outlet terminal of the switch | Copper Bridge for load side can be assemble according to the demand |
