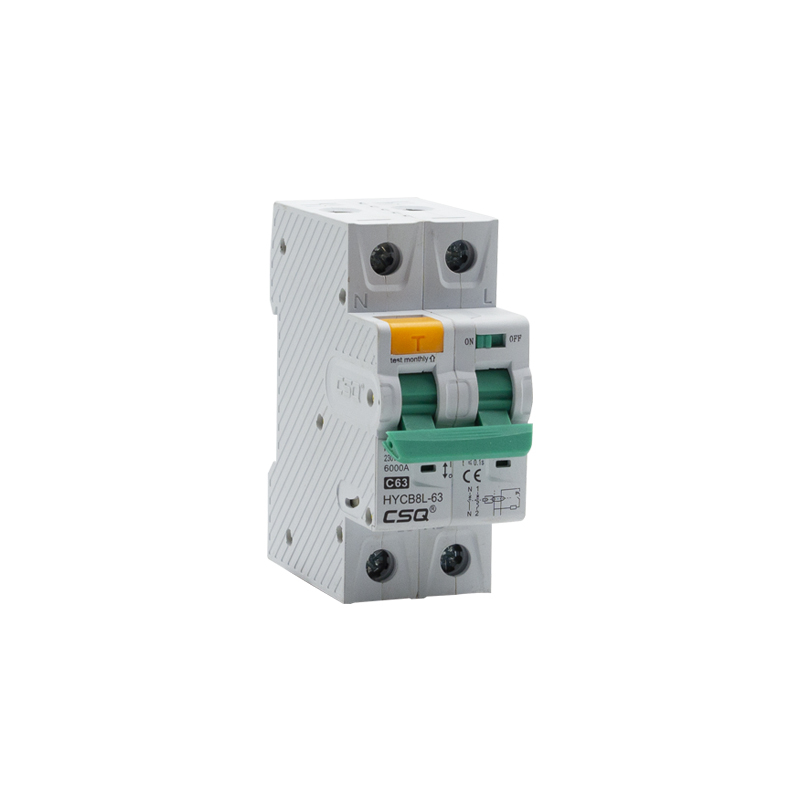

HYCB8L-63
CSQ
HYCB8L-63 residual current operated circuit breaker is applicable to AC 50Hz, rated voltage 230V, rated current to In 63A line, when personal electric shock or grid leakage current exceeds the specified value, the residual current operated circuit breaker can Cut off the fault power supply quickly in a very short time to protect the safety of people and electrical equipment, and at the same time protect the line Load or short circuit can also be used for infrequent conversion of lines. This product is applicable to various places such as industry, commerce, high-rise buildings and civil residences.Compliance standards: GB/T 16917.1, IEC 61009-1, CCC and CE certification.
Main functions: overload protection, short circuit protection, leakage protection, isolation function
Product Paramenters | ||
---|---|---|
Rated Voltage | 230V AC | |
Rated Current | 6A、10A、16A、20A、25A、32A、 40A、50A、63A | |
Rated Residual Operating Current | 0.015A, 0.03A | |
Rated Residual Non-operating Current | 0.5I△n | |
Residual Current Protection Type | AC Type, A Type | |
Poles | 2P | |
Instantaneous Release Type | C Type, D Type | |
Rated Short-circuit Breaking Capacity | 6000A | |
Rated Residual Making & Breaking Capacity | 2000A | |
Tightening Torque | 2.5N•m | |
Class Of Pollution | Grade II | |
Protection Grade | IP20 | |
Installation Category | Class II and III |
HYCB8L-63 residual current operated circuit breaker is applicable to AC 50Hz, rated voltage 230V, rated current to In 63A line, when personal electric shock or grid leakage current exceeds the specified value, the residual current operated circuit breaker can Cut off the fault power supply quickly in a very short time to protect the safety of people and electrical equipment, and at the same time protect the line Load or short circuit can also be used for infrequent conversion of lines. This product is applicable to various places such as industry, commerce, high-rise buildings and civil residences.Compliance standards: GB/T 16917.1, IEC 61009-1, CCC and CE certification.
Main functions: overload protection, short circuit protection, leakage protection, isolation function
Product Paramenters | ||
---|---|---|
Rated Voltage | 230V AC | |
Rated Current | 6A、10A、16A、20A、25A、32A、 40A、50A、63A | |
Rated Residual Operating Current | 0.015A, 0.03A | |
Rated Residual Non-operating Current | 0.5I△n | |
Residual Current Protection Type | AC Type, A Type | |
Poles | 2P | |
Instantaneous Release Type | C Type, D Type | |
Rated Short-circuit Breaking Capacity | 6000A | |
Rated Residual Making & Breaking Capacity | 2000A | |
Tightening Torque | 2.5N•m | |
Class Of Pollution | Grade II | |
Protection Grade | IP20 | |
Installation Category | Class II and III |
