Availability: | |
---|---|

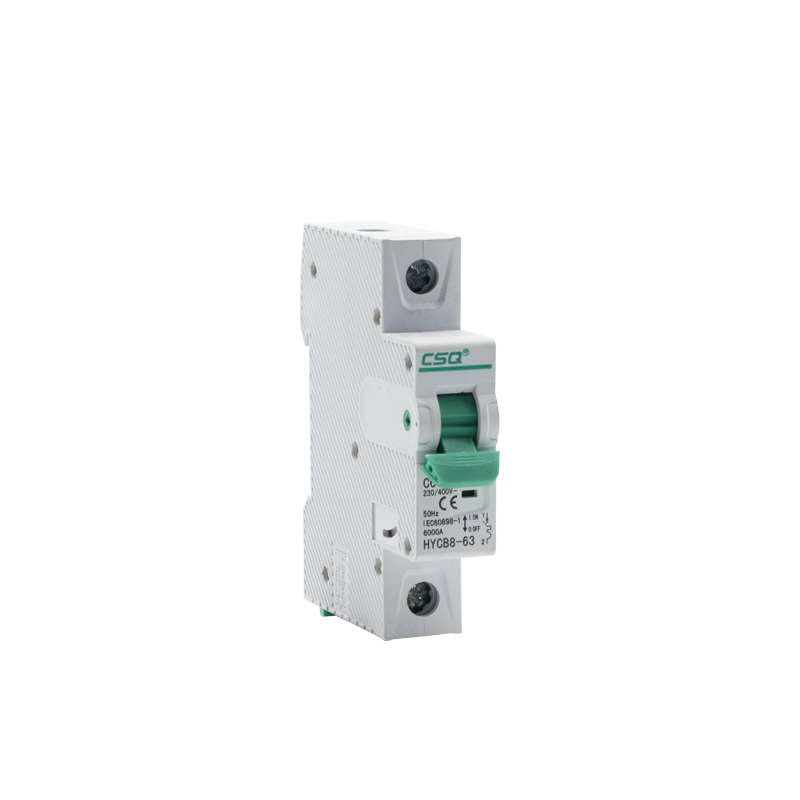

HYCB8-63
CSQ
HYCB8-63 (H) miniature circuit breaker is mainly applicable to terminal distribution lines with AC 50Hz, rated voltage up to 400V and rated current up to 63A in commercial office buildings, civil residences and general industrial purposes. It can provide overload and short circuit protection for the lines, and can also perform infrequent switching operations on the lines under normal conditions.
Compliance standards: GB/T 10963.1, IEC 60898-1
Product Paramenters | ||
---|---|---|
Rated temperature (C) | -35°C — +70°C | |
Rated voltage (V) AC | AC 230/400 | |
Rated current (A) | C | 1,3,5,6,10,15,16,20,25,32,40,50,60,63 |
D | 1,3,5,6,10,15,16,20,25,32,40 | |
Electric endurance not lower than (times) | 6000,10000 | |
Mechanical endurance lower than (imes) | 2000 | |
Tropical test | 2 kinds | |
Weight(g) | 1P 2P 3P 4P | |
102 208 308 408 |
HYCB8-63 (H) miniature circuit breaker is mainly applicable to terminal distribution lines with AC 50Hz, rated voltage up to 400V and rated current up to 63A in commercial office buildings, civil residences and general industrial purposes. It can provide overload and short circuit protection for the lines, and can also perform infrequent switching operations on the lines under normal conditions.
Compliance standards: GB/T 10963.1, IEC 60898-1
Product Paramenters | ||
---|---|---|
Rated temperature (C) | -35°C — +70°C | |
Rated voltage (V) AC | AC 230/400 | |
Rated current (A) | C | 1,3,5,6,10,15,16,20,25,32,40,50,60,63 |
D | 1,3,5,6,10,15,16,20,25,32,40 | |
Electric endurance not lower than (times) | 6000,10000 | |
Mechanical endurance lower than (imes) | 2000 | |
Tropical test | 2 kinds | |
Weight(g) | 1P 2P 3P 4P | |
102 208 308 408 |
