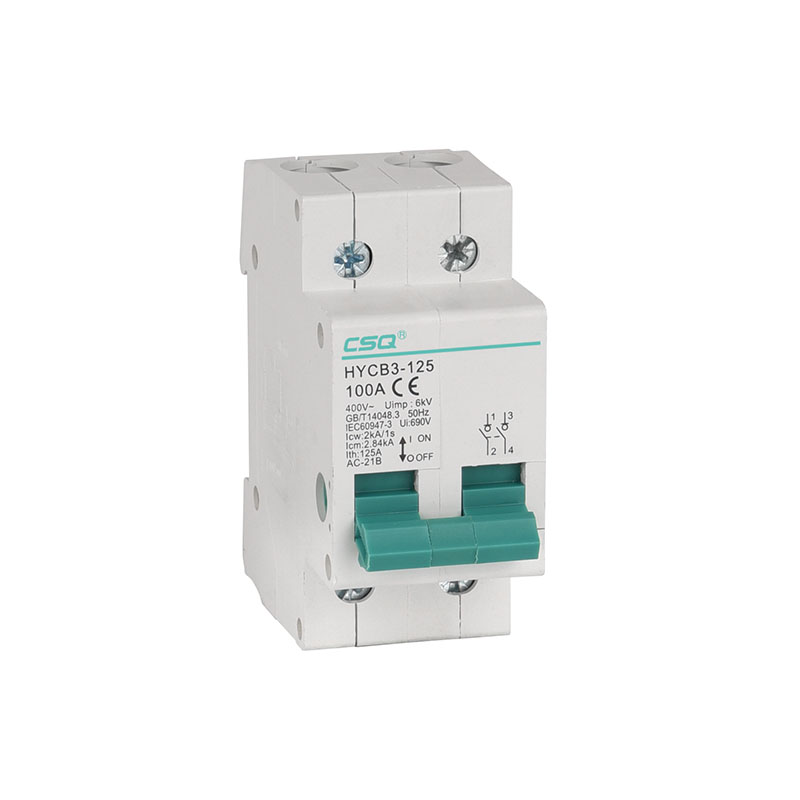

HYCB3-125 series isolator switch has high dynamic and thermal stability. It is mainly used as the main switch in terminal combination appliances. It is suitable for power distribution and control circuits with AC 50Hz or 60Hz, rated voltage of 400V and below, and can also be used to control motors. , low-power electrical appliances and lighting, widely used in industrial and mining enterprises, high-rise buildings, commercial and family places.
This product complies with the standard: IEC60947-3 GB/T14048.3-2017.
Model | HYCB3-125 | ||
Rated Current Ie (A) | 32A/40A/50A/63A/80A/100A/125A | ||
Rated Voltage Ue | 230V/400V | ||
Rated short-time withstand current Icm | 2kA | ||
Rated short-circuit making capacity Icm (peak value) | 2.84kA | ||
Rated impulse withstand voltage Uimp | 6kV | ||
Operating performance | 8500 times with no load, 1500 times with load, a total of 10000 times, and the operating frequency is 120 times/hour. | ||
