HYCB2-32
CSQ

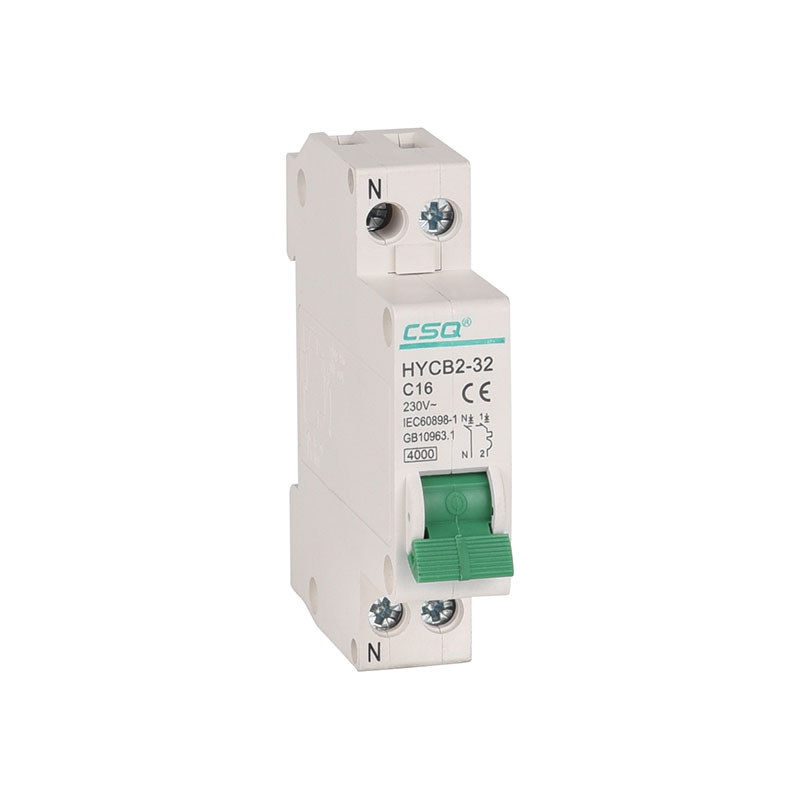

HYCB2-32 ( DPN ) "phase line + neutral line" circuit breaker is suitable for AC 50Hz or 60Hz, rated voltage 230V single-phase residential line, to protect the overload and short circuit of the electrical line, the product has high breaking capacity, Small size and width of 18mm. The zero and live wires are cut off at the same time, which eliminates the personal and fire danger caused by the live wire, the neutral wire being reversed or the neutral wire paired with the position. It is the most ideal power distribution protection switch in the civil residential field at present. This product complies with GB10963.1 and IEC60898 standards.
Model | HYCB2-32 | |||
Rated Current Ie (A) | 6A/10A/16A/20A/25A/32A | |||
Rated Voltage Ue | 230V | |||
Breaking capacity | 4kA | |||
1Pole number | 1P+N | |||
Frame rating current | 32A |
HYCB2-32 ( DPN ) "phase line + neutral line" circuit breaker is suitable for AC 50Hz or 60Hz, rated voltage 230V single-phase residential line, to protect the overload and short circuit of the electrical line, the product has high breaking capacity, Small size and width of 18mm. The zero and live wires are cut off at the same time, which eliminates the personal and fire danger caused by the live wire, the neutral wire being reversed or the neutral wire paired with the position. It is the most ideal power distribution protection switch in the civil residential field at present. This product complies with GB10963.1 and IEC60898 standards.
Model | HYCB2-32 | |||
Rated Current Ie (A) | 6A/10A/16A/20A/25A/32A | |||
Rated Voltage Ue | 230V | |||
Breaking capacity | 4kA | |||
1Pole number | 1P+N | |||
Frame rating current | 32A |
