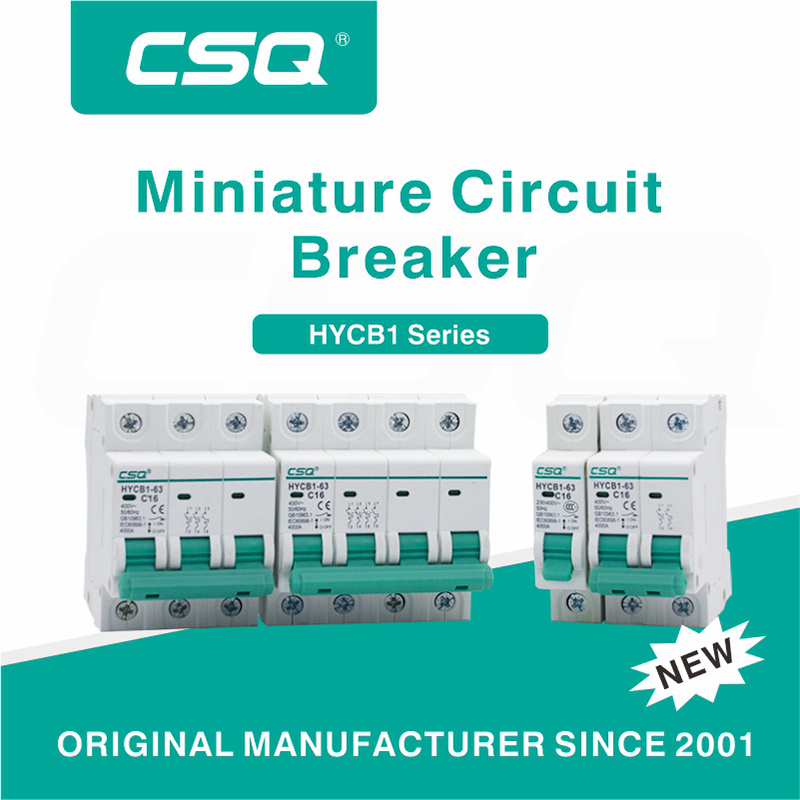

HYCB1-63 series miniature circuit breakers are mainly used in circuits with AC 50Hz/60Hz, rated working voltage of 230V/400V and below, and rated current up to 63A. The circuit breaker is mainly used foroverload and short circuit of electrical circuits and equipment in existing buildings. Protection, also suitablefor infrequent operation and isolation of lines.
Model | HYCB1-63 | |||
Rated Current Ie (A) | 4A-63A | |||
Rated Voltage Ue | 240V/415V | |||
Breaking capacity | 4kA | |||
Electric endurance not lower than (times) | 6000 | |||
Mechanical endurance lower than (times) | 2000 | |||
Protective grade | IP20 | |||
Weight | 1P | 2P | 3P | 4P |
102 | 208 | 308 | 408 | |
