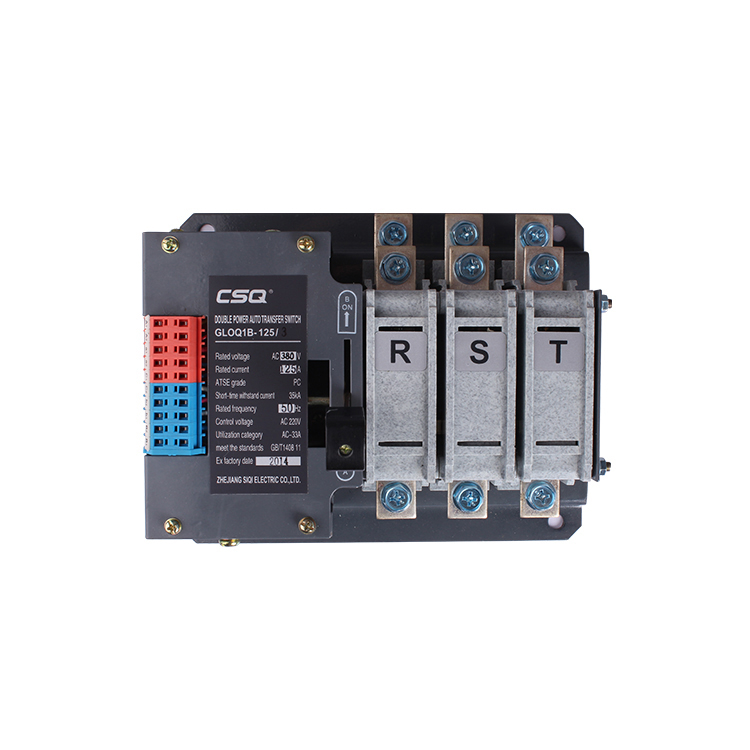

GLOQ1B-N
CSQ
Application range
The rated insulation voltage of the product is 690V, the rated frequency is 50/60Hz, the rated voltage is 400VAC and the rated current is 10A-125A. The product is mainly used for the conversion of emergency power supply system between two powers so as to ensure the important load (for example, firefighting load) can continuously and reliably operate. Mainly used for the nationally specified first-grade current, the product is applicable to the occasions requiring continuous normal power supply such as high-rise building, post and firefighting, coalmine and shipping, chemical metallurgy, industrial production line, medical sanitation, military facilities, etc.
Model | GLOQ1B-N |
Rated Current Ie (A) | 10A~125A |
Electrical Appliances Class | PC |
Pole | 2,3,4 |
Rated Frequency | 50/60Hz |
Rated Insulation Voltage | 690V |
Rated Working Voltage | 110V/220V/380V/400V |
Control Voltage | Standard:220V(±20%);110V/220V/380V/400V/660V customized |
Working state | I-II |
Transfer Time | ≤80ms |
Note | With controller inside of ATS;Integrated Type |
Application range
The rated insulation voltage of the product is 690V, the rated frequency is 50/60Hz, the rated voltage is 400VAC and the rated current is 10A-125A. The product is mainly used for the conversion of emergency power supply system between two powers so as to ensure the important load (for example, firefighting load) can continuously and reliably operate. Mainly used for the nationally specified first-grade current, the product is applicable to the occasions requiring continuous normal power supply such as high-rise building, post and firefighting, coalmine and shipping, chemical metallurgy, industrial production line, medical sanitation, military facilities, etc.
Model | GLOQ1B-N |
Rated Current Ie (A) | 10A~125A |
Electrical Appliances Class | PC |
Pole | 2,3,4 |
Rated Frequency | 50/60Hz |
Rated Insulation Voltage | 690V |
Rated Working Voltage | 110V/220V/380V/400V |
Control Voltage | Standard:220V(±20%);110V/220V/380V/400V/660V customized |
Working state | I-II |
Transfer Time | ≤80ms |
Note | With controller inside of ATS;Integrated Type |
