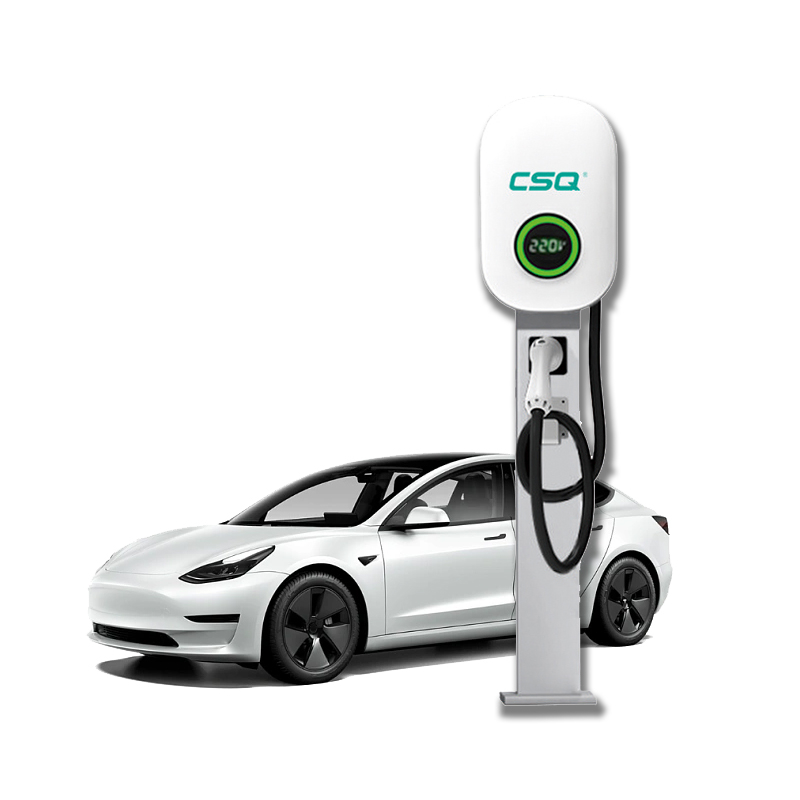

HYC3-AC-7KW
CSQ
The AC charging station provides AC power with AC 50/60Hz and rated voltage 220V±20%. Charging electric vehicles with on-board chargers is mainly suitable for the following places:
•Large, medium and small electric vehicle charging stations;
•All kinds of electric vehicle parking spaces public places, such as urban residential quarters,shopping plazas, power business places,etc.;
•High-speed service areas, stations, docks and other transportation hub areas;
•Real estate and engineering construction acceptance needs.
| Product Name | Wall-Mounted/Floor-Standed AC Charging Station |
| Model | HYC3-AC-7KW |
| Overall dimensions(mm) | 304*191*95mm |
| Human-computer interaction | LED indicator strip |
| AC power supply | 220Vac±20%;50±10Hz |
| Rated input and output current | 32A |
| Rated output power | 7kW |
| Working enviroment | Altitude:≤2000m;Temperature: -20℃~+50℃ |
| Charging method | Plug and charge |
| Networking methods | Bluetooth/WIFI/APP |
| Operation mode | / |
| Executive standard | IEC61851-1:2017;IEC62196-2:2016 |
| Charging cable length | Standard 5 meters(optional) |
| Protection grade | IP54 |
| Protection function | Overvoltage/undervoltage /overload /grounding Overcurrent/leakage/overtemperature |
